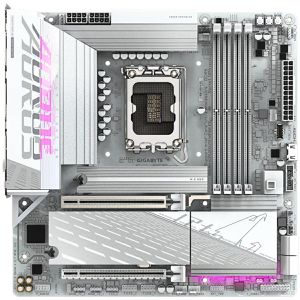

Gigabyte Mainboard B860M A ELT WF6E ICE, Micro-ATX, 4x DDR5 DIMM, USB4, Sockel 1851

• Supports Intel Core Ultra processors (Series 2)
• Digital twin 12+1+2 phases VRM solution
• Dual Channel DDR5: 4DIMMs with XMP Memory Module Support
• D5 Bionic Corsa for Infinite Memory Performance
• AI Perfdrive: Provides optimal and customized BIOS preset profile for users
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage: 3M.2 slots, including 1x PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
• Fast Networking: 2.5 GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
• Extended Connectivity: USB4 Type-C with DP-Alt, HDMI, DisplayPort

----------------------------------------
Merkmale:
Sockel: 1851
Formfaktor: Micro-ATX
Speicherbänke: 4x DIMM
----------------------------------------
weitere Produktinformationen:
Chipsatz: Intel B860
Speicher: 4x DDR5 288-pin DIMM, bis zu 9200 MT/s (OC), max. 256 GB gesamt
Formfaktor / Maße: Micro-ATX / 244 x 244 mm
Erweiterungsslots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 4x SATA 6 Gbit/s, 3x M.2

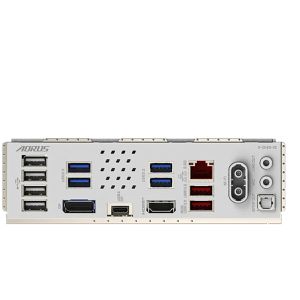

Anschlüsse Grafik: 1x HDMI, 1x DisplayPort
Anschlüsse Daten: 1x USB 4 Gen?3x2, 2x USB 3.2 Gen 2x1 (USB 3.1), 4x USB 3.2 Gen 1x1 (USB 3.0), 3x USB 2.0
Netzwerk: 1x 2,5 Gigabit-LAN (Realtek), Wi-Fi 6E, Bluetooth 5.3
Audio: 8-Channel HD Audio Codec (Realtek), 2x Audioanschlüsse, optischer S/PDIF-Ausgang
Systemvoraussetzungen: Windows 11 (64-bit)
----------------------------------------
